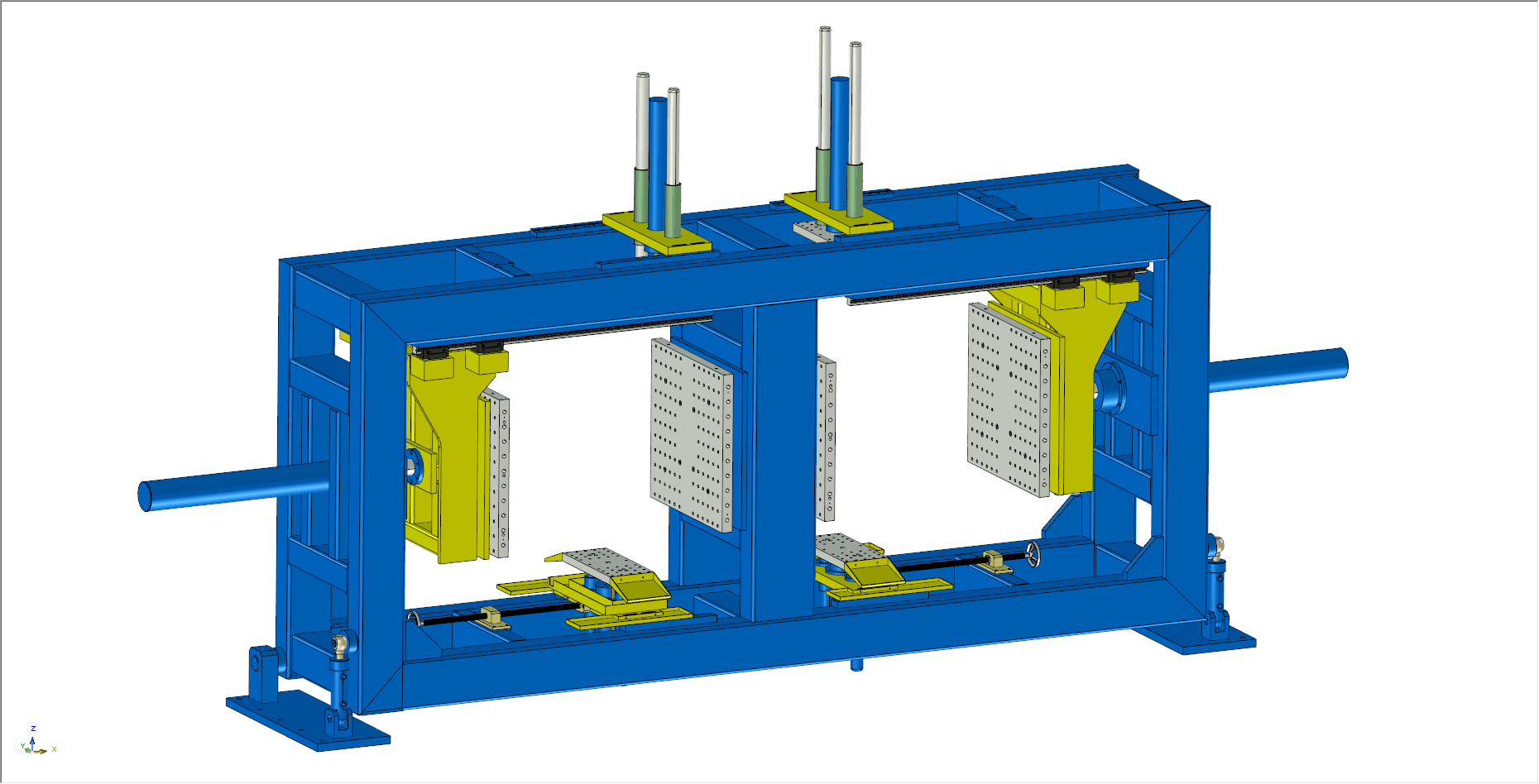

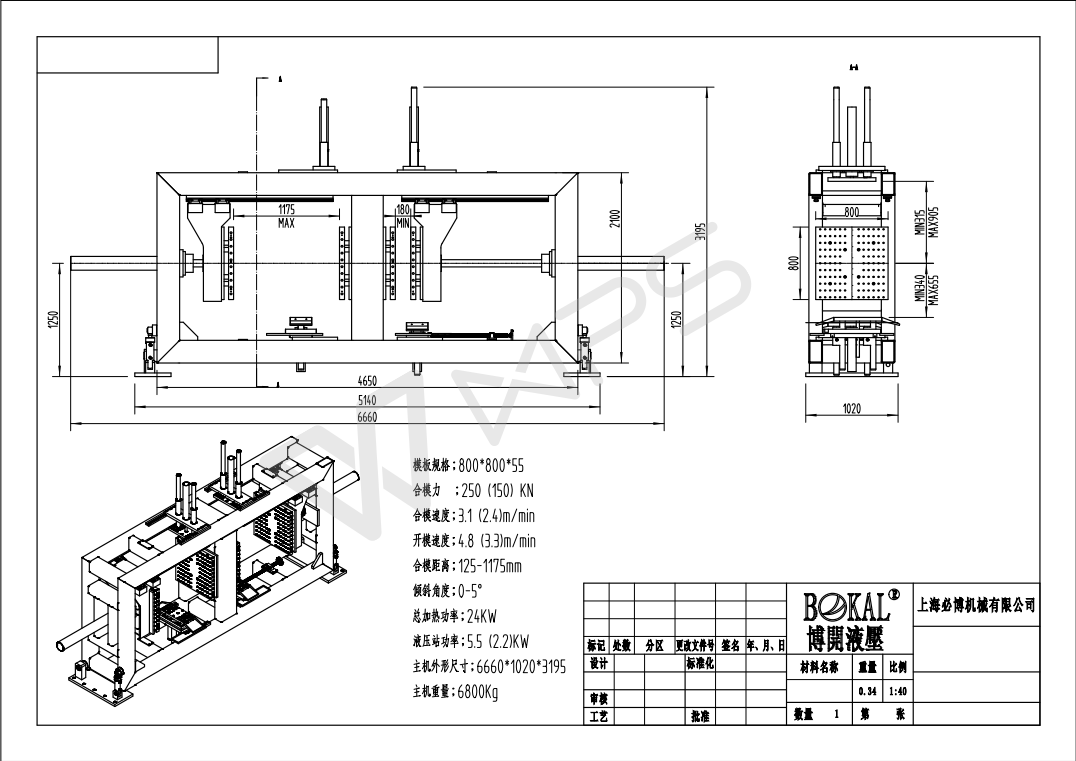

APG process clamping machine for current instrument transformer

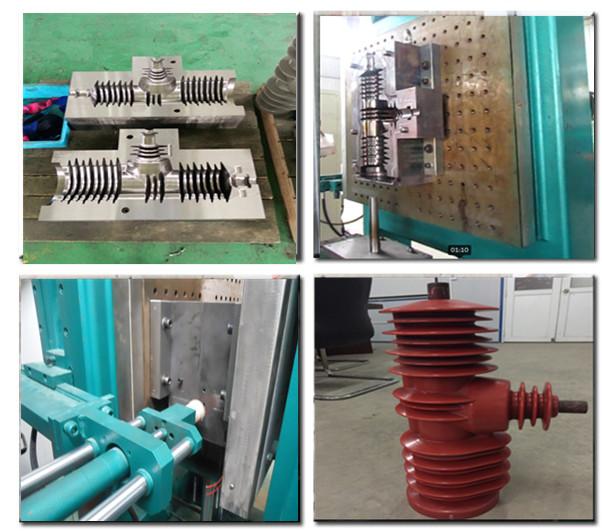

APG moulding Machine adopts structure of fixed mould plate in the middle, one set of equipment can be used as two, when one side carries out clamping and injection production, the other side can be opened to take out the product, and clean the mould, it not only cuts down the equipment cost, but also improves the production efficiency. It has upper and lower core pulling, is suitable for small-sized bushing, contact box, post insulator, sensor, various supports, transformer, etc.

This company produces the APG equipment has the following several advantages:

1, the only one at the same time the APG manufacturing equipment and APG pressure injection mould, equipment and mold better coordination, to ensure that product qualification.

2, the only company with domestic transformer product testing equipment manufacturer, product compression, partial discharge test equipment, as required in our trial production of qualified products, in the shipment.

, have rich experience of transformer production technology teacher, for your company provide free technology training, and help customers qualified products.

4, specially designed for transformer of thin film degassing mixing device, greatly improving the uniformity of mixing and pumping vacuum material.

5, Combination of equipment, moulds, as well as under the engineers constantly summarize and improve the production equipment has superior performance, high efficiency energy saving etc.

6.By APG pressure gel molding process, greatly improving the production efficiency, increased the product surface bright and clean degree, reduce the mold cost, reduces the labor costs of inputs.

7.We can customize machine according to customer's needs.

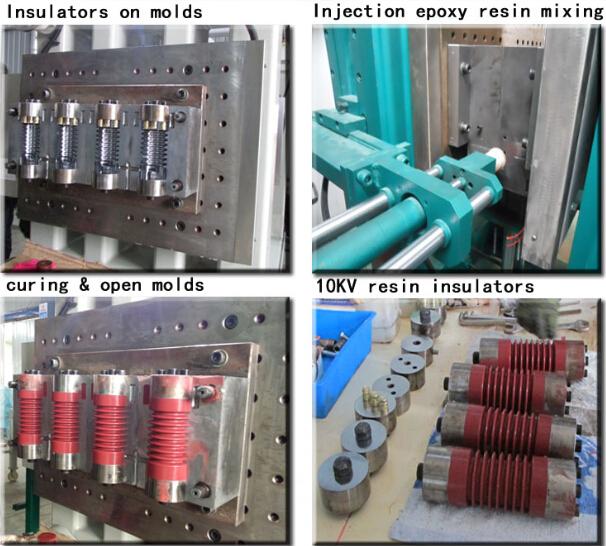

APG technological process includes three sections: Pre-mixing, Automatic pressure gelating and Curing.

The complete plant for APG Process need moulds, pre-mixing device, movable injection pressure vessel, hydraulic pressure gelating machine, air compressor curing oven, etc.

Volmet automatic clamping machines permit the productivity advantages of APG systems to be fully realized. The whole system as well as the mould are easily accessible. They can be tilted androtated around various axes. This enables the moulds to be inserted by automatic lifting devices.

The static mixer can be directly docked on to / decoupled from the filling nozzle. The short path with just a small quantity of reactive mass ensures the uniform, homogeneous quality of the cast component and minimizes wastage of material.

Core pullers can be fitted wherever are needed.

Construction withstands rigorous continuous operation and high static loading but at the same time slim, cost-saving design.

The huaao clamping machines can be rapidly retooled for other APG moulds.

With the Universal Clamping Machines huaao also offers a flexible modular system for customer-specific, cost-favourable design.

Starting from the basic model,huaap  universal clamping machines can be enhanced and/or expanded — in accordance with the particular market and order situation — to ever more efficient and capable systems.

Features:

Low power consumption

Less maintenance

High operation efficency standards

Abrasion resistant

Easy function

Excellent design

Robust construction

Corrosion resistant
Long life servies
