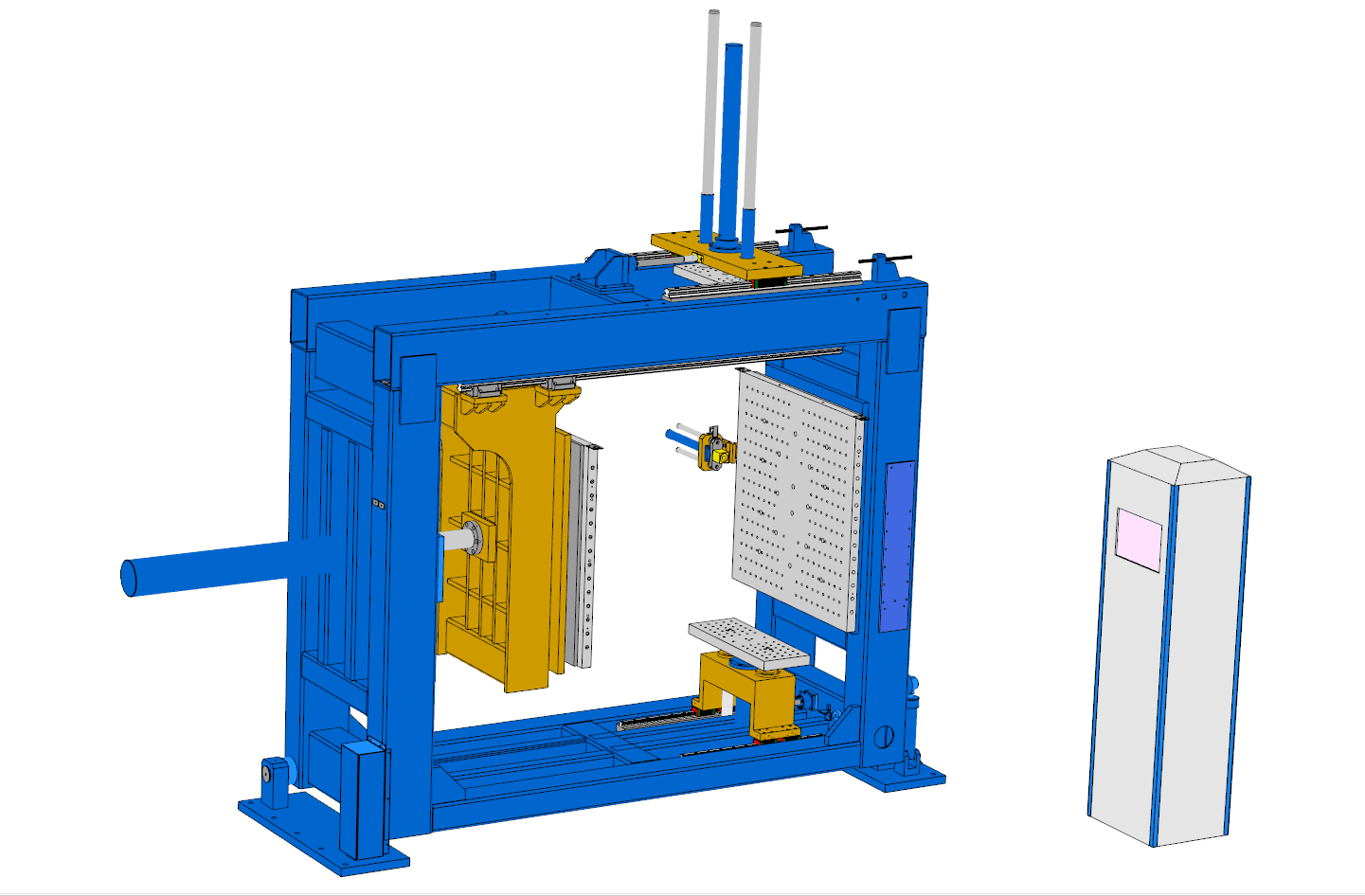

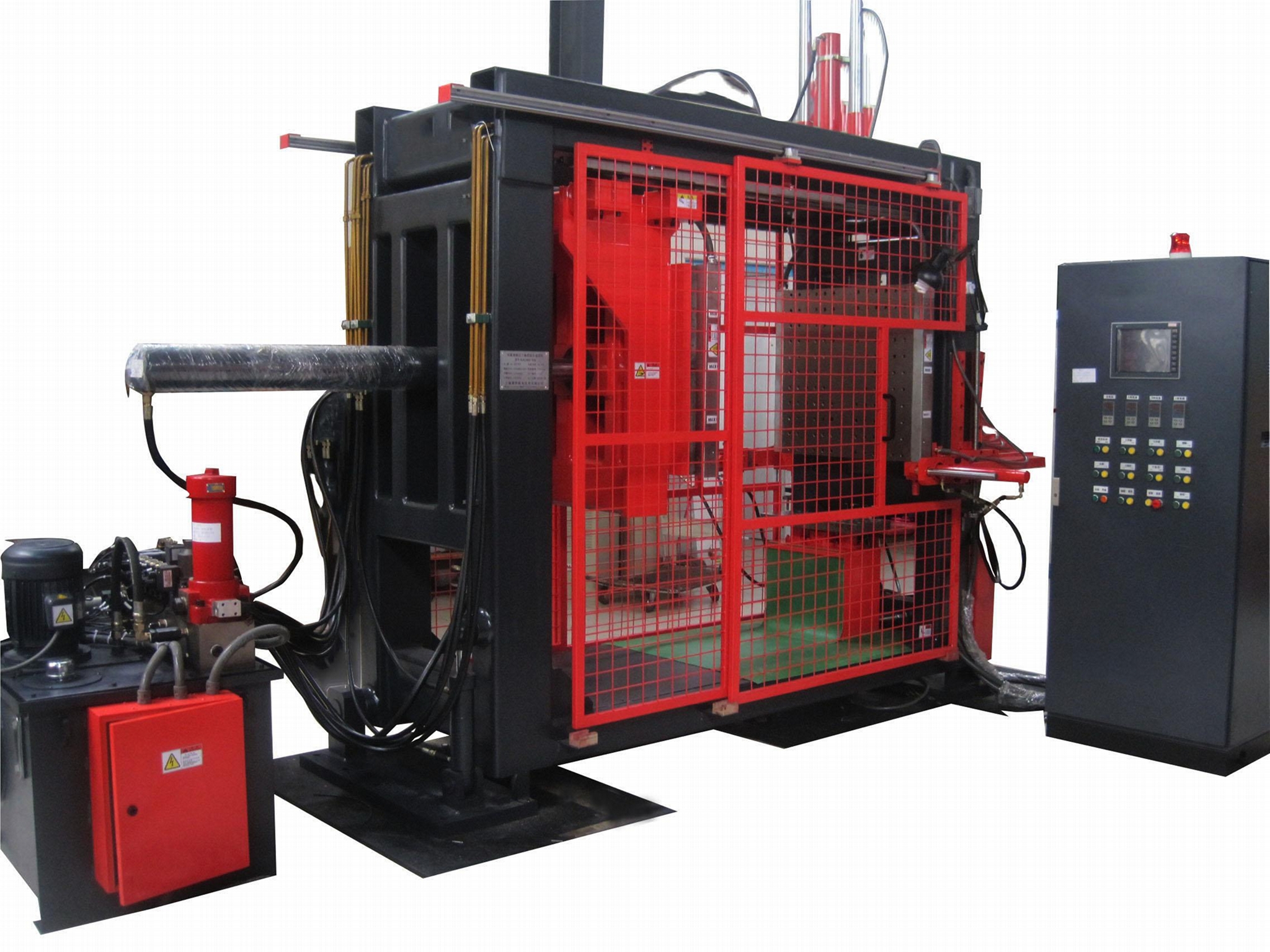

- Application-Standard APG clamping machine:
- This APG casting machine belong to Standard APG clamping machine, the min clamp plate size is 600X800mm, and the Max clamp plate size is: 1200X1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SFG gas-insulated indoor switch disconnector. Etc.
- The APG casting machine upper and lower core distance can be customized, foundation pit is necessary if lower core travel distance above 500mm.
-
- Technical Parameters
| Model No. |
VOL-865 |
VOL-885 |
VOL-1010 |
VOL-1210 |
| Heating plate size （mm） |
800X600 |
800X800 |
1000X1000 |
1000X1200 |
| Clamping force （KN） |
250 |
250 |
400 |
400 |
| Speed of clamping close（m/min） |
3.1 |
3.1 |
2.7 |
2.7 |
| Speed of clamping open（m/min） |
4.8 |
4.8 |
3.1 |
3.1 |
| Distance between heating plates （mm） |
150-1200 |
200-1500 |
200-1600 |
200-1600 |
| Heating power （KW） |
12 |
20 |
24 |
24 |
| Hydraulic unit power（KW） |
5.5 |
5.5 |
5.5 |
5.5
|

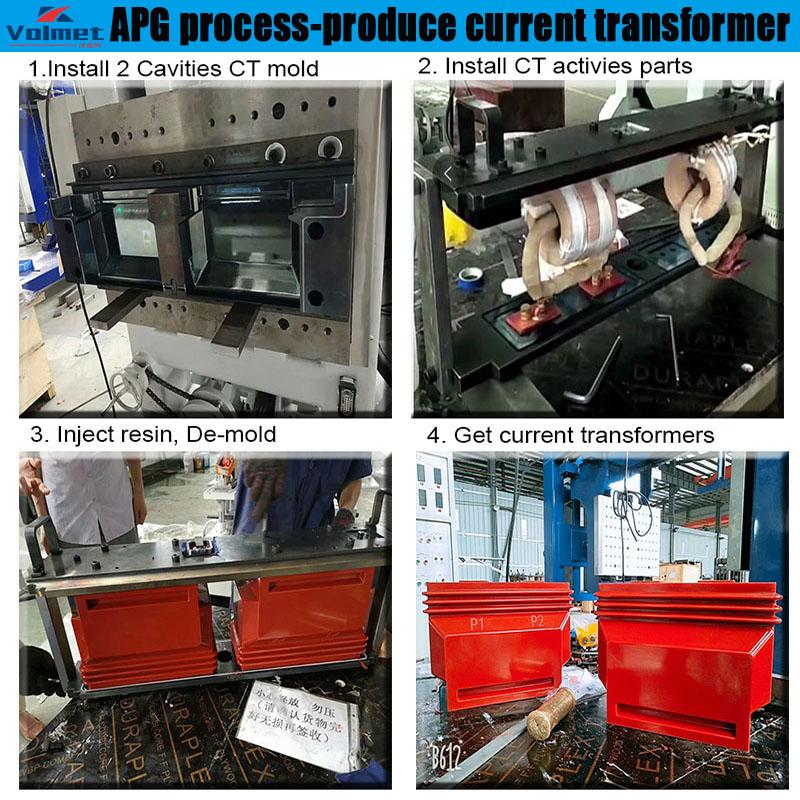

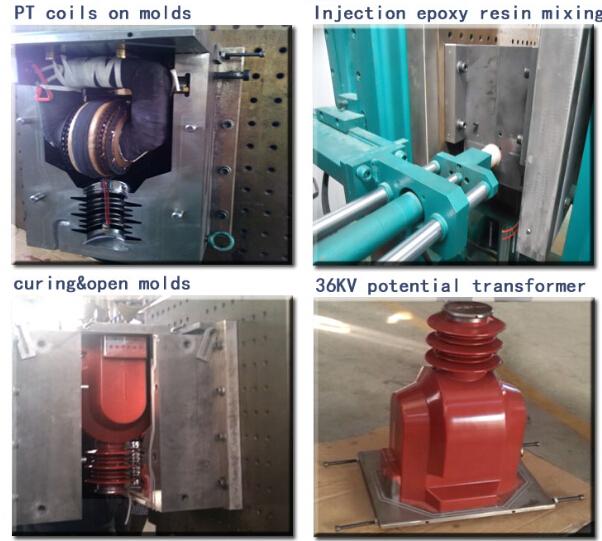

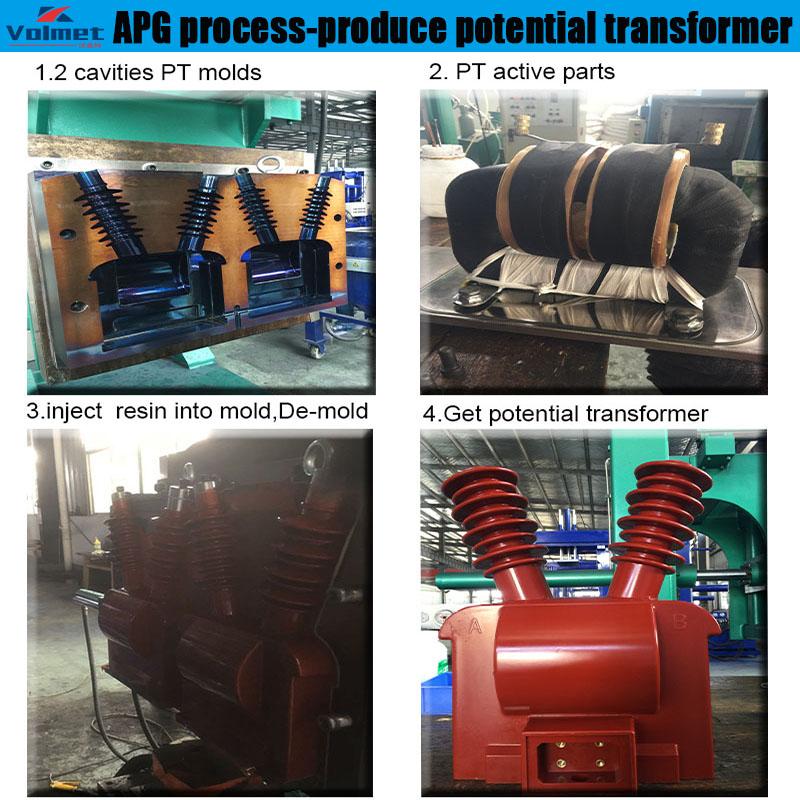

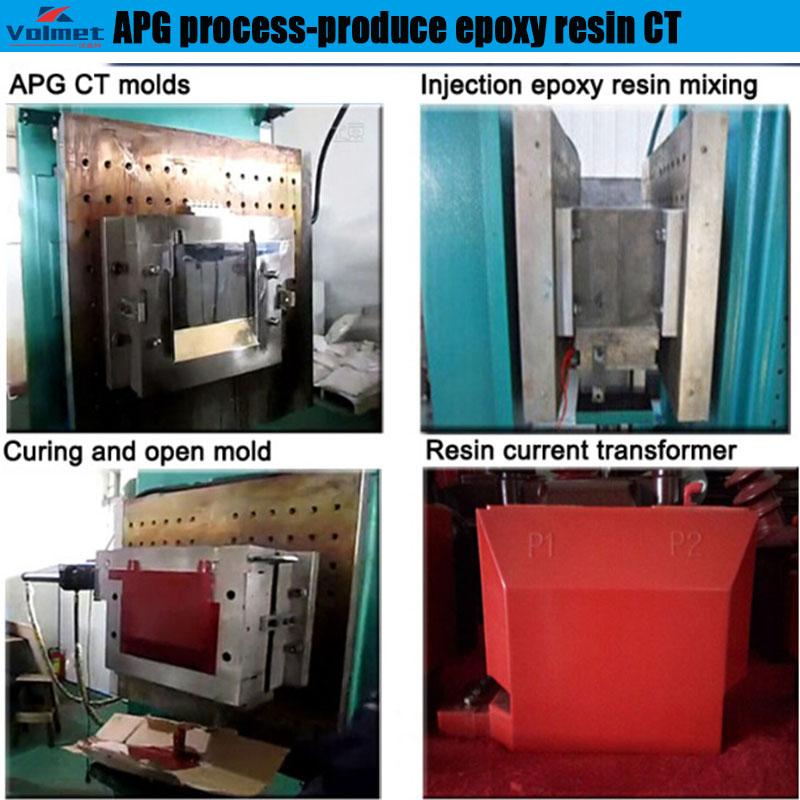

- APG machine produce process 4 steps:
- Install and heating mould →Pre-mixing epoxy compound →Injection →Curing
- Firstly, install mould on APG clamps →heat it up to 60°C→open mould, brush mould release agent →close mould
- Secondly,pre-mixing casting compound in vacuum pot →turn off vacuum valve when vacuum gage show -0.1→release vacuum, push vacuum pot nearby APG machine→
- Thirdly, APG Add pressure into vacuum pot and start injecting cast compound into mold, release pressure →open mold →take out products
- Fourthly ,Curing. Move product in to oven.
|
Epoxy resin, curing agent, silica powder, pigment=1:1:3.5
|
- VOLMET
- VOLMET Companyis a professional enterprise engaged in producing the APG machine, APG Molds, Casting Molds, winding machine for CT/PT,laser marking machine,engineers who works with epoxy resin products more than 25 years, talented from product design,mold design, APG technique training overseas.guarantee training you make qualified products.
- APG Technique Traning In Colombia—whole production line(APG machine,molds,windingmachine,oven, raw materials)
-
|
|
|
|
| Price Terms︰ | FOB CIF CFR |
| Payment Terms︰ | T/T |
| Packing︰ | standard export wooden case |
|
|
