1.Volmet China supplier Automatic pressure epoxy insulator hydraulic APG injection machine
2.APG machine Application:
APG machine is applicable for small-sized products such as transformer, bushing, post insulator, contact cover, sensor, various supports, etc.
3.Main technical specification
|
Model No.
|
VOL-865
|
VOL-885
|
VOL-1010
|
VOL-1210
|
|
Heating plate size
|
800X600mm
|
800X800mm
|
1000X1000mm
|
1000X1200mm
|
|
Clamping force
|
250（KN）
|
250（KN）
|
400（KN）
|
400（KN）
|
|
clamp close Speed
|
3.1（m/min）
|
3.1（m/min）
|
2.7（m/min）
|
2.7（m/min）
|
|
clamp open Speed
|
4.8（m/min）
|
4.8（m/min）
|
3.1（m/min）
|
3.1（m/min）
|
|
Distance between heating plates
|
150-1200 mm
|
200-1500mm
|
200-1600mm
|
200-1600mm
|
|
Heating power
|
12（KW）
|
20（KW）
|
24（KW）
|
24（KW）
|
|
Hydrulic power pack power
|
5.5（KW）
|
5.5（KW）
|
5.5（KW）
|
5.5（KW）
|
|
Tilting degree
|
7° X axis,Y axis tilting optional
|
|
Machine dimension
|
3750X970X2570
|
4500X1020X3730
|
4805X1220X4260
|
4805X1220X4260
|
|
Machine weight
|
4300（KG）
|
5350（KG）
|
7700（KG）
|
7700（KG）
|
4.APG technique process
Install and heating mould →Pre-mixing epoxy compound →Injection →Curing
Firstly, install mould on APG clamps →heat it up to 60°C→open mould, brush mould release agent →close mould
Secondly,pre-mixing casting compound in vacuum pot →turn off vacuum valve when vacuum gage show -0.1→release vacuum, push vacuum pot nearby APG machine→
Thirdly, APG Add pressure into vacuum pot and start injecting cast compound into mold, release pressure →open mold →take out products
Fourthly ,Curing. Move product in to oven.
5. Video links:
1. https://www.youtube.com/watch?v=twsvRiqF_WU (for full automatic apg clamping machine)
2. https://www.youtube.com/watch?v=FoFt_pm6TxI (VT active parts)
3. https://www.youtube.com/watch?v=F1Lhn_snlTU (for wall bushing)
4. https://www.youtube.com/watch?v=YCNDvhStF7w (for producing insulators)
5. https://www.youtube.com/watch?v=rRcR_ZFnLXs&t=15s(for producing CT)
6.Why choose Volmet:
1.Offer Equipments Consulting Service.
2.Supply High quality APG machine, mixing device,APG&casting Mold, CT/PT winding machine,

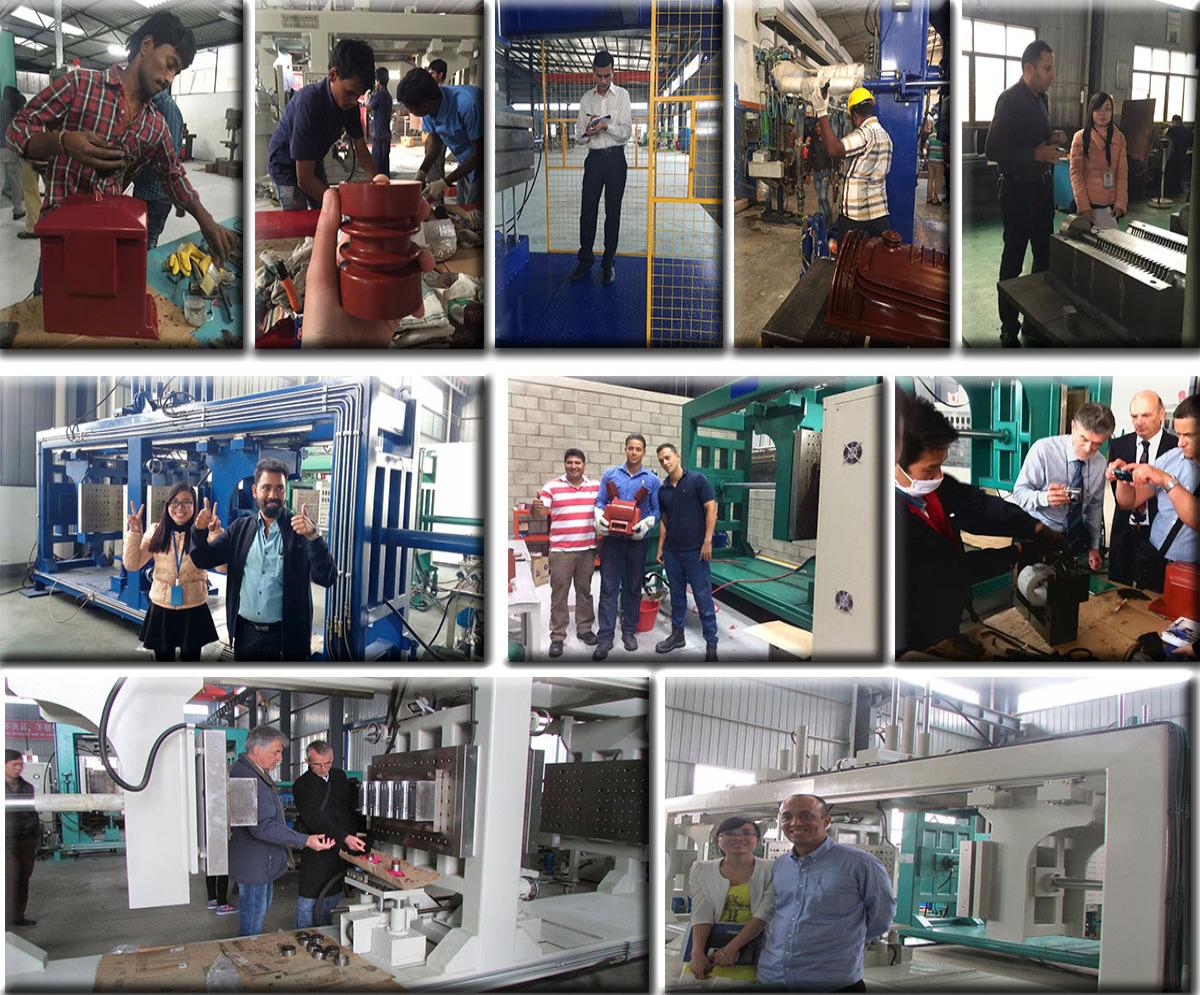

3.Produce qualified samples with APG machine before delivery
Guarantee that APG machine and molds are 100% good before send to clients.
4.Onsite training APG technique till you control produce products by yourself.
