4. Main technical parameters
|
Model
|
VOL-260
|
VOL-300
|
VOL-400
|
VOL-500
|
|
Diameter range of windable eletromagnetic wire
|
0.5-1.5mm
|
0.5-2.6mm
|
0.5-3.2mm
|
0.5-3.2mm
|
|

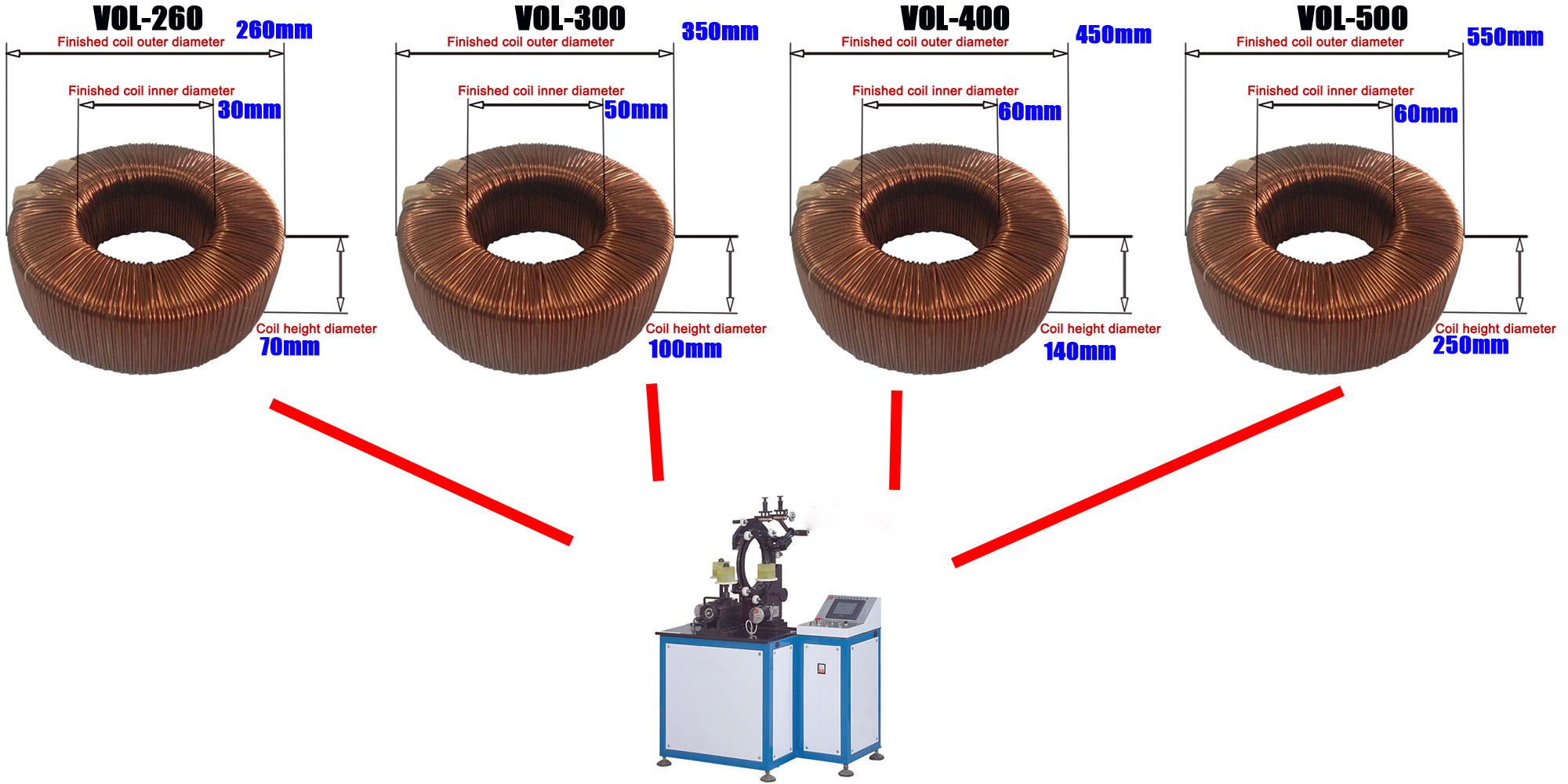

Min inner diameter of winded coils
|
30mm
|
50mm
|
60mm
|
60mm
|
|
Max outer diameer of winded coils
|
260mm
|
350mm
|
450mm
|
550mm
|
|
Max height of winded coils
|
70mm
|
100mm
|
140mm
|
250mm
|
|
Max winding rotation speed
|
100 rmp
|
100 rmp
|
100 rmp
|
100 rmp
|
|
Machine tool power
|
0.75kW
|
1.5kW
|
1.5kW
|
1.5kW
|
|
Max outline sise of machine tool
|
600x1000x1200
|
700x1000x1300
|
700x1000x1400
|
850x1000x1500
|
If you want to order, please send the pictures and size of your coils to us.
( include Diameter of wire, Height of winded coil, Inner diameter of winded coil, Outer diameter of coil ). we'll recommend the most suitable one for you.
